Connect Microsoft 365

Microsoft 365 is how Vectis shows customer emails and upcoming meetings inline on each customer page — so a tech sees “last email 1:47pm — VPN down” before opening the ticket. It also drives MFA coverage + privileged-account evidence for the security posture page and compliance packs. Setup takes about 15 minutes: register an Entra ID app, grant six application permissions, paste the credentials here.

What Vectis does with Microsoft 365

  • Syncs email metadata from the technician mailboxes you list — sender, recipients, subject, a short preview, and the timestamp. Message bodies are neverstored in Vectis.
  • Syncs calendar events where a customer contact is an attendee — past week and upcoming 14 days.
  • Filters by customer domain — any message that doesn’t touch a known customer’s email domain is dropped before it ever reaches the database. Vectis does not scrape your whole mailbox.
  • Fetches full message bodies on-demand, only when a user clicks to expand one, and writes every fetch to the audit log.
  • Pulls MFA registration state per user + whether they sit in a privileged directory role. Used by the security posture page + compliance evidence packs. Only the method types a user registered (e.g. authenticator, FIDO2) are stored — never the devices themselves or any secrets.
  • Reads Microsoft Secure Score (requires M365 Business Premium or higher) — daily posture score, 30-day trend, and top improvement actions per customer. Visible on the customer hub → Integrations → Microsoft Secure Score card. Requires SecurityEvents.Read.All on the publisher app (granted via the “Update permissions” button on the M365 integration card).
  • Reads Conditional Access policies (requires Azure AD P1, included in M365 Business Premium or higher) — lists all CA policies, detects whether an enabled policy enforces MFA for all users, and surfaces the result as an MFA-enforcement badge per customer. Visible on the customer hub → Integrations → Conditional Access card. Requires Policy.Read.All on the publisher app (included in the Phase 339 permission expansion — click “Update permissions” if you consented before that update).

What you'll need

  • Microsoft 365 / Entra ID admin access (technically: Global Admin, or Application Administrator + Privileged Role Administrator)
  • A list of technician mailbox UPNs to sync

1. Register an Entra ID app

  1. Sign in to entra.microsoft.com as a tenant admin.
  2. Open Identity → Applications → App registrations and click New registration.
  3. Name it “Vectis”, leave supported account types as “Single tenant”, and skip the redirect URI (not needed for app-only auth).
  4. On the new app’s Overview page, copy the Application (client) ID and Directory (tenant) ID — you’ll paste both into Vectis.

2. Grant the six application permissions

  1. On the app, open API permissions → Add a permission → Microsoft Graph → Application permissions (not Delegated).
  2. Communications (email + calendar context):
    • Mail.Read — read mail in all mailboxes (the mailbox allow-list on the Vectis side is what actually scopes which ones we query)
    • Calendars.Read — read calendars in all mailboxes
    • User.Read.All — resolve UPNs / display names
  3. Security posture (MFA + privileged roles):
    • Reports.Read.All — pull the user-registration-details report (MFA / passwordless capability per user)
    • UserAuthenticationMethod.Read.All — read which authentication methods a user has registered (method types only, no secrets)
    • Directory.Read.All — enumerate directory roles to flag privileged accounts
  4. Back on API permissions, click Grant admin consent for <tenant>. The status column must turn to “Granted for” on all six — without this step, every Graph call 403s.
Application permissions grant the app the ability to read mail across the tenant. The actual scope of what Vectis pulls is constrained by the Technician Mailboxes list you set below — we never query mailboxes that aren’t on that list. Treat the list as the authoritative scope, not a convenience filter. MFA / role data is tenant-wide by design — the compliance evidence pack is about the entire tenant, not a mailbox subset.

3. Create a client secret

  1. On the app, open Certificates & secrets → Client secrets → New client secret.
  2. Description: “Vectis”. Expiry: pick a timeline you’ll remember to rotate against — 12 or 24 months is typical. Set a calendar reminder now for ~2 weeks before expiry.
  3. Click Add. Copy the Value (not the Secret ID) immediately — it is shown exactly once. If you miss it, delete the secret and create a new one.

4. Paste credentials into Vectis

  1. Go to Admin → Integrations and click Configure on Microsoft 365.
  2. Paste the Tenant ID, App Client ID, and Client Secret Value.
  3. In Technician Mailboxes, enter a comma-separated list of UPN-style emails (e.g. jane@msp.com, jack@msp.com). These are the MSP-staff mailboxes Vectis will sync context from.
  4. Click Test. You’ll see “Connected to <tenant> — N mailboxes configured” within a few seconds.
  5. Click Save, then trigger an initial sync.

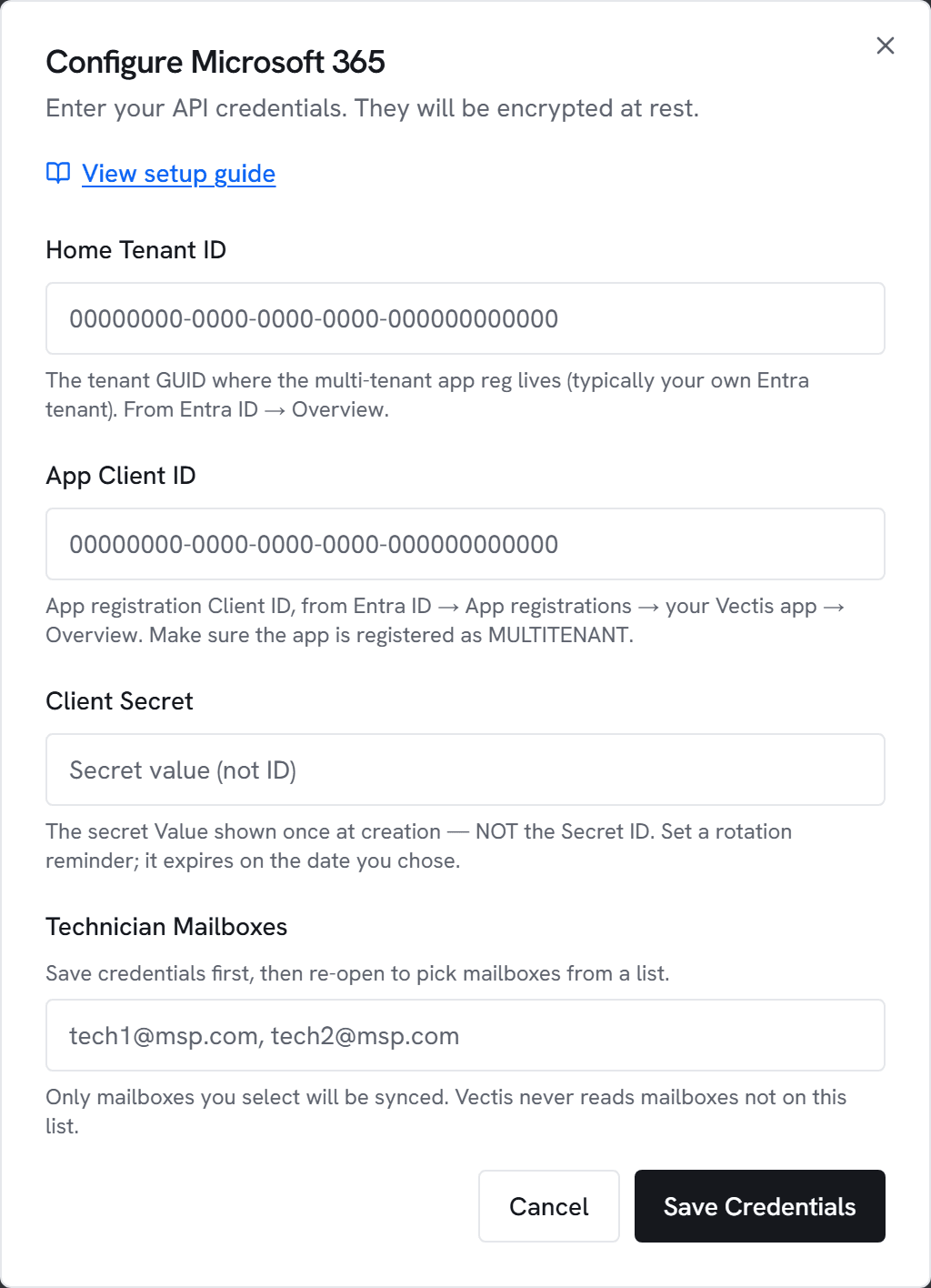

The Configure Microsoft 365 dialog in Vectis admin > integrations — the form the next step walks you through.
The Configure Microsoft 365 dialog

What appears where

  • Customer hub → Integrations → Secure Score card: current score ring (color-coded green/amber/red), 30-day trend sparkline, and top 3 not-implemented improvement actions with point values.
  • Customer hub → Communications section: recent emails (last 14 days) and upcoming calendar events, each expandable to a full body that’s fetched on-demand.
  • Customer hub → Security posture: MFA coverage %, privileged-account MFA %, and the list of privileged users (Global Admin, Exchange Admin, etc.) for that customer’s tenant. Customer match is by UPN domain.
  • /security cross-customer rollup: per-signal averages including MFA + privileged MFA across every customer the M365 connector observed.
  • Compliance evidence packs: MFA / privileged MFA populate the relevant CMMC / HIPAA / SOC 2 control rows with real numbers + evidence.
  • RBAC: admins see all matched communications. Members and viewers see only the ones where their own email is in the participant list. No elevation path — RBAC is enforced server-side before any body is fetched.
  • Audit log: every full-body fetch writes a row with the user ID + message ID.

Microsoft 365 security posture — go to Vectis, not the admin center

Beyond inline email + calendar context, Vectis builds a single prioritized Microsoft 365 view per customer tenant — and a book-wide roll-up at Microsoft 365 (sidebar → Operate). Every identity gap, wasted license, hardening issue, and live threat is ranked worst-first, each with the action to take. Flip the book view from “by customer” to “by finding” to see which issue is most widespread and work-list the fix across every affected tenant at once.

  • License reclamation + right-sizing — paid seats that are disabled or haven’t signed in, plus seats over-licensed for what they actually use, each with the cheaper plan that still covers them and real prepaid-vs-used dollars.
  • MFA coverage, tenant hardening & Secure Score fixes — how each tenant actually enforces MFA (Security Defaults, Conditional Access, or per-user), a pass/warn/fail hardening checklist, and the ranked top fixes to raise the Secure Score.
  • Compromised-mailbox & threat signals — inbox rules that auto-forward mail to external addresses (the top sign of a hijacked mailbox) and active Microsoft Defender alerts inline.
  • Directory change timeline & standing admin — a 7-day feed of who created users, granted admin roles, or consented apps (brand-new risks get a New badge), with permanent Global Admins separated from just-in-time (PIM-eligible) ones.
  • Service health & SharePoint exposure — active Microsoft 365 service incidents and the tenant-wide SharePoint external-sharing policy surfaced as findings.
These posture checks read consented customer tenants through the Vectis publisher app (the same Partner Center / GDAP consent the per-tenant integrations use). As new checks ship, Vectis requests additional read-only Graph scopes (e.g. ServiceHealth.Read.All, MailboxSettings.Read, SecurityAlert.Read.All, SharePointTenantSettings.Read.All). Grant them in one click with Update permissions on the Microsoft 365 card — any check whose scope isn’t yet consented shows a quiet “needs access” nudge instead of failing. Vectis never writes back: it reads posture and surfaces the action for you to take.

Common errors

401 Unauthorized — Client secret is wrong, or it’s past its expiry date. Check Certificates & secrets for the expiry; rotate if needed.

403 Forbidden — Either the three API permissions are missing, OR tenant-wide admin consent wasn’t granted. Open Entra ID → App registrations → Vectis → API permissions and confirm all three show “Granted for <tenant>”.

404 on /organization — Tenant ID doesn’t resolve. Double-check you’re pasting the Directory (tenant) ID, not a subscription or user GUID.

“Enter at least one technician mailbox” — The mailbox allow-list is required. Vectis will not sync every mailbox in the tenant by design.

Still stuck?

Email support@mspvectis.com with the error message and we’ll unblock you.
